Home / Products / Ptfe Adhesive Tapes / Ptfe Skived Film Tapes Ptfe

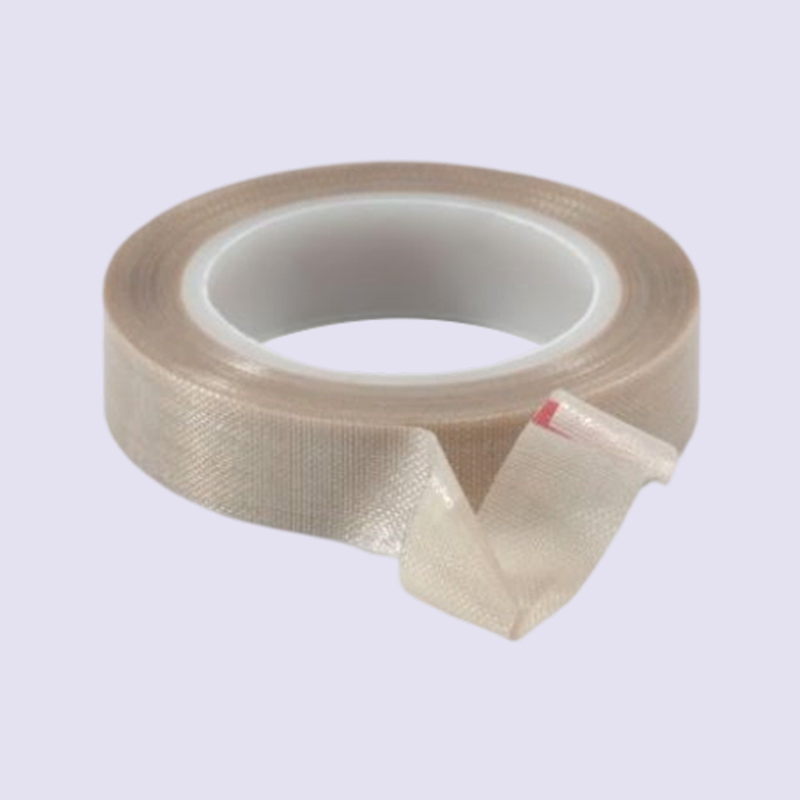

Ptfe Skived Film Tapes Ptfe

PTFE Film Tape is polytetrafluoroethylene (PTFE) film-based tape, single surface treated with silicone adhesive, which offers a wide temperature resistance range from -54℃(-65℉) to 260℃(500℉). PTFE Film Tape includes PTFE extruded film tape and PTFE extruded film tape.

PTFE extruded film tape has a non-stick and abrasion-resistant surface, making it a quick-release barrier between characters where pressure and temperature change.

PTFE extruded film tape helps to reduce friction and machinery noise. Compared with normal PTFE skived film tape in the market, our PTFE skived film tape services longer under high temperatures and does not leave residual adhesive when peeling off after use.

Features of PTFE Film Tape
1, high heat resistance. Resistant to processing temperatures of 260 degrees Celsius.

2, to remove stains: the surface is smooth, not easy to adhere to any substance. Easy to clean all kinds of oil stains, stains or other attachments attached to its surface; Paste, resin, paint and almost all adhesive substances can be simply removed;

3, extensive chemical resistance: chemical resistance is even better than many precious metals.

4, electrical stability: all kinds of temperature and humidity dielectric properties are very stable.

5, with high insulation performance, anti-ultraviolet, anti-static.

6, low humidity.

7, easy to use, long service life.

Specification

PTFE glass fabric with backside adhesive (silicone)

Item No. Basic fabric thickness Total thickness Adhesion(to steel) Tensile strength Res.Temperature
KB008AS 0.08mm 0.13mm 12N/4cm 600N/5cm -70-260℃
KB012AS 0.11mm 0.16mm 12N/4cm 1100N/5cm -70-260℃
KB013AS 0.125mm 0.175mm 12N/4cm 1150N/5cm -70-260℃
KB018AS 0.18mm 0.225mm 12N/4cm 1600N/5cm -70-260℃
KB025AS 0.25mm 0.30mm 12N/4cm 2000N/5cm -70-260℃

Pure PTFE film with adhesive (silicone)

Item No. Basic fabric thickness Total thickness Adhesion(to steel) Res.Temperature
TS004AS 0.04mm 0.08mm 12N/4cm -70-260℃
TS005AS 0.05mm 0.09mm 12N/4cm -70-260℃
TS007AS 0.07mm 0.11mm 12N/4cm -70-260℃
TS008AS 0.08mm 0.13mm 12N/4cm -70-260℃
TS013AS 0.13mm 0.18mm 12N/4cm -70-260℃
TS020AS 0.20mm 0.25mm 12N/4cm -70-260℃
